Industrial Cooling Pads – Evaporative Cooling System

Industrial Cooling Pads – Evaporative Cooling System

AR Industrial Solutions supplies high quality Evaporative Cooling Pads used in industrial cooling systems, poultry farms, greenhouses, livestock farms, warehouses and ventilation systems. Cooling pads are manufactured from high absorbent kraft paper designed to provide maximum cooling efficiency and long service life.

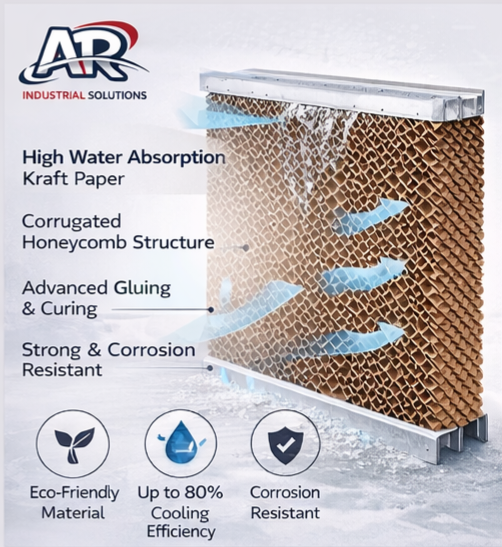

These cooling pads (also called wet pads) are produced through advanced processing including gluing, drying, corrugating, shaping and curing. The structure allows excellent water absorption and airflow, making them ideal for evaporative cooling systems.

---

Key Features

• High water absorption kraft paper
• Cooling efficiency up to 80%
• Strong hydroscopicity and wet stiffness
• Corrosion resistant and anti-mildew
• Long service life
• Eco-friendly and chemical free
• Fast water diffusion and evaporation
• Energy saving and environmentally friendly

---

Available Cooling Pad Models

Model	Flute Height	Angle
7090	7mm	45° × 45°
7060	7mm	45° × 15°
6090	6mm	45° × 45°
5090	5mm	45° × 45°

---

Standard Dimensions

• Height: 1500 mm / 1800 mm / 2000 mm
• Width: 300 mm / 600 mm
• Depth: 100 mm / 150 mm / 200 mm / 300 mm

Custom sizes can also be manufactured according to customer requirements.

---

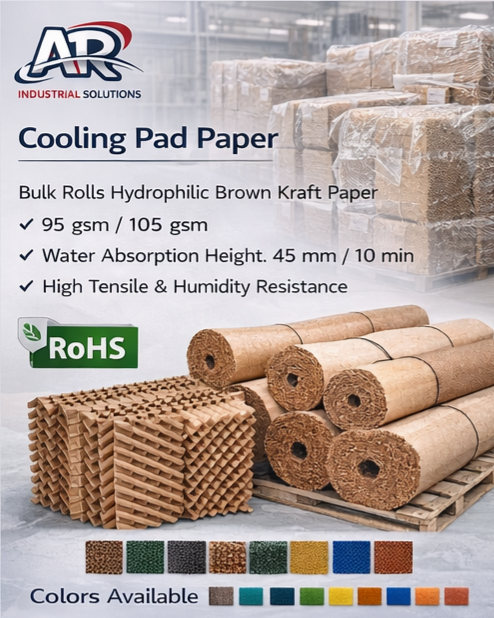

Cooling Pad Material (Cooling Pad Paper)

Cooling pads are manufactured from premium imported kraft paper with high tensile strength and excellent water absorption capacity.

• Paper weight options: 95 gsm / 105 gsm
• Water absorption height: 45mm / 10 minutes
• Moisture level: 5% – 8%
• Humidity resistance: 18N
• Tension resistance: 70N

Each 600 mm width cooling pad contains approximately 85 sheets of corrugated kraft paper.

---

Cooling Pad Types

Brown Cooling Pad

• Made from absorbent kraft paper
• High evaporation efficiency
• Natural water absorption
• Long service life

Black Coated Cooling Pad

• High strength structure
• Improved durability
• Better cleaning performance
• High corrosion resistance

---

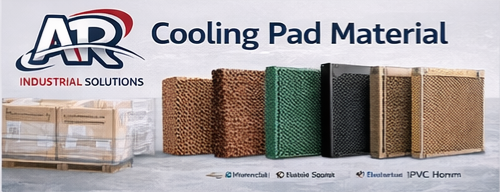

Available Colors

• Brown
• Green
• Black Coated
• Green & Brown
• Yellow
• Blue
• Red
• Orange

One side color coated cooling pads are also available for easy cleaning and better appearance.

---

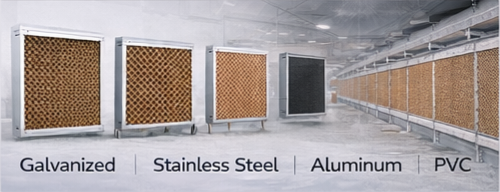

Frame Options

• Galvanized Steel Frame
• Aluminum Frame
• Stainless Steel Frame
• PVC Frame

---

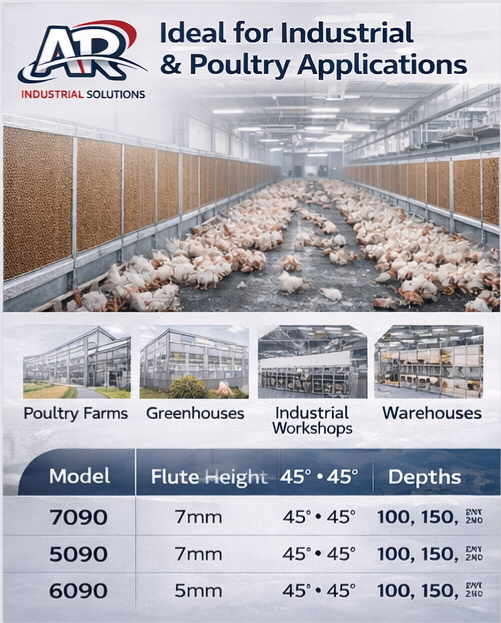

Applications

• Poultry Farms
• Greenhouses
• Industrial Workshops
• Warehouses
• Livestock Farms
• Evaporative Cooling Systems

---

Wholesale Supply

AR Industrial Solutions provides export quality evaporative cooling pads and cooling pad paper for distributors, importers and industrial projects worldwide. We focus on stable quality, competitive wholesale prices and long-term partnerships.

Bulk orders and OEM supply available.
